Description

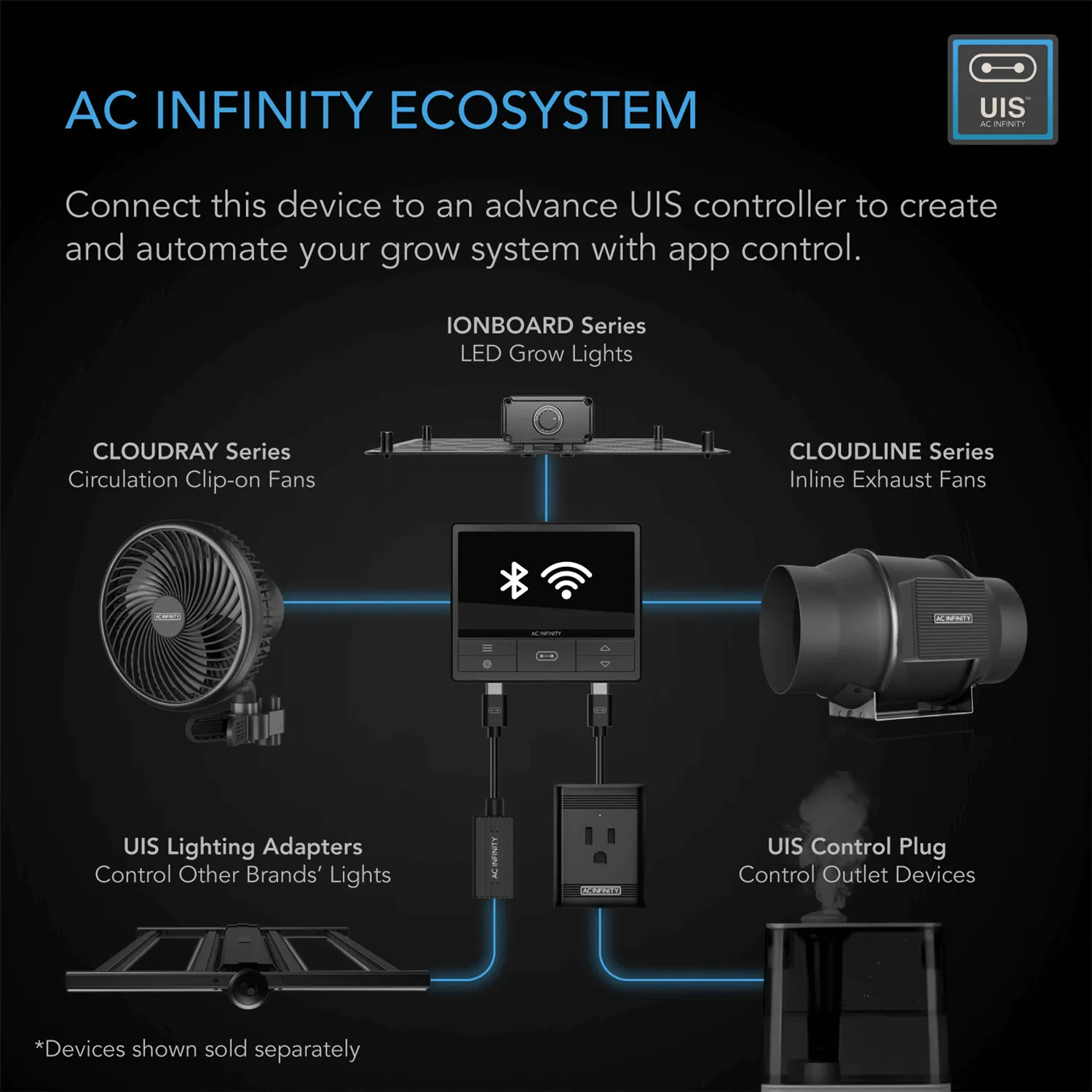

Quiet and Efficient Design: This product is intended to quietly ventilate grow areas, transfer heating/cooling to rooms, circulate fresh air, and cooling AV closets. It comes with a wired 10-speed fan controller and is also compatible with all UIS controllers with intelligent programming.

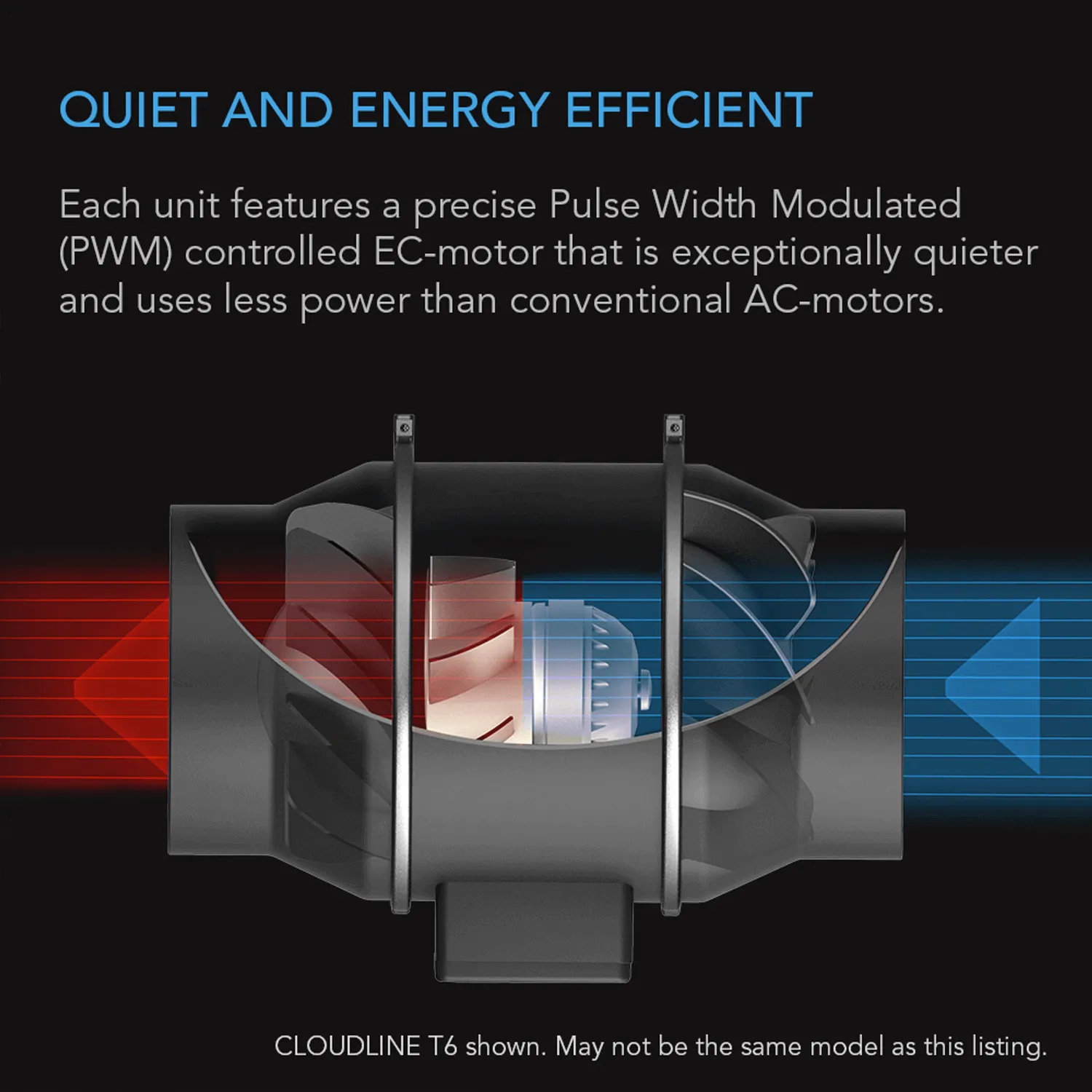

Energy-Efficient Performance: Thanks to its PWM-controlled EC motor, it provides quiet and energy-efficient performance, producing minimum heat and noise. The mixed flow design with a stator blade and hydrodynamic wind circles enables airflow delivery even in high-resistance areas.

Specific Product Features: The duct size is 8 inches, and the dimensions are 8.5 x 11.9 x 9.2 inches. It delivers an airflow of 807 CFM and produces a noise level of 39 dBA. It is also equipped with durable dual ball bearings.

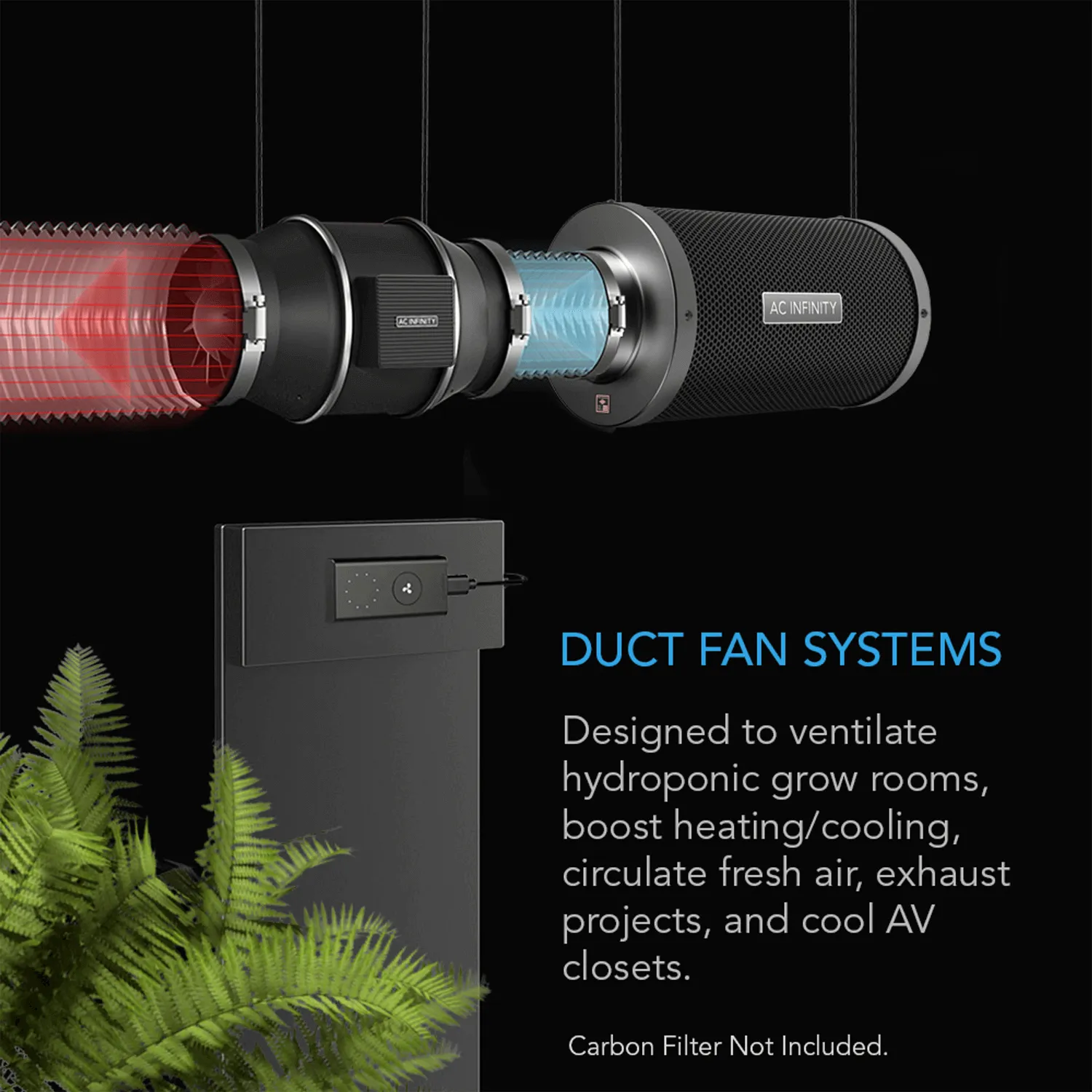

Product Description: This smart inline duct fan is designed to silently ventilate grow rooms, boost heating/cooling in rooms, circulate fresh air, and cool AV closets. It comes with a smart controller that connects to multiple UIS devices and features dynamic climate and time-based programming.

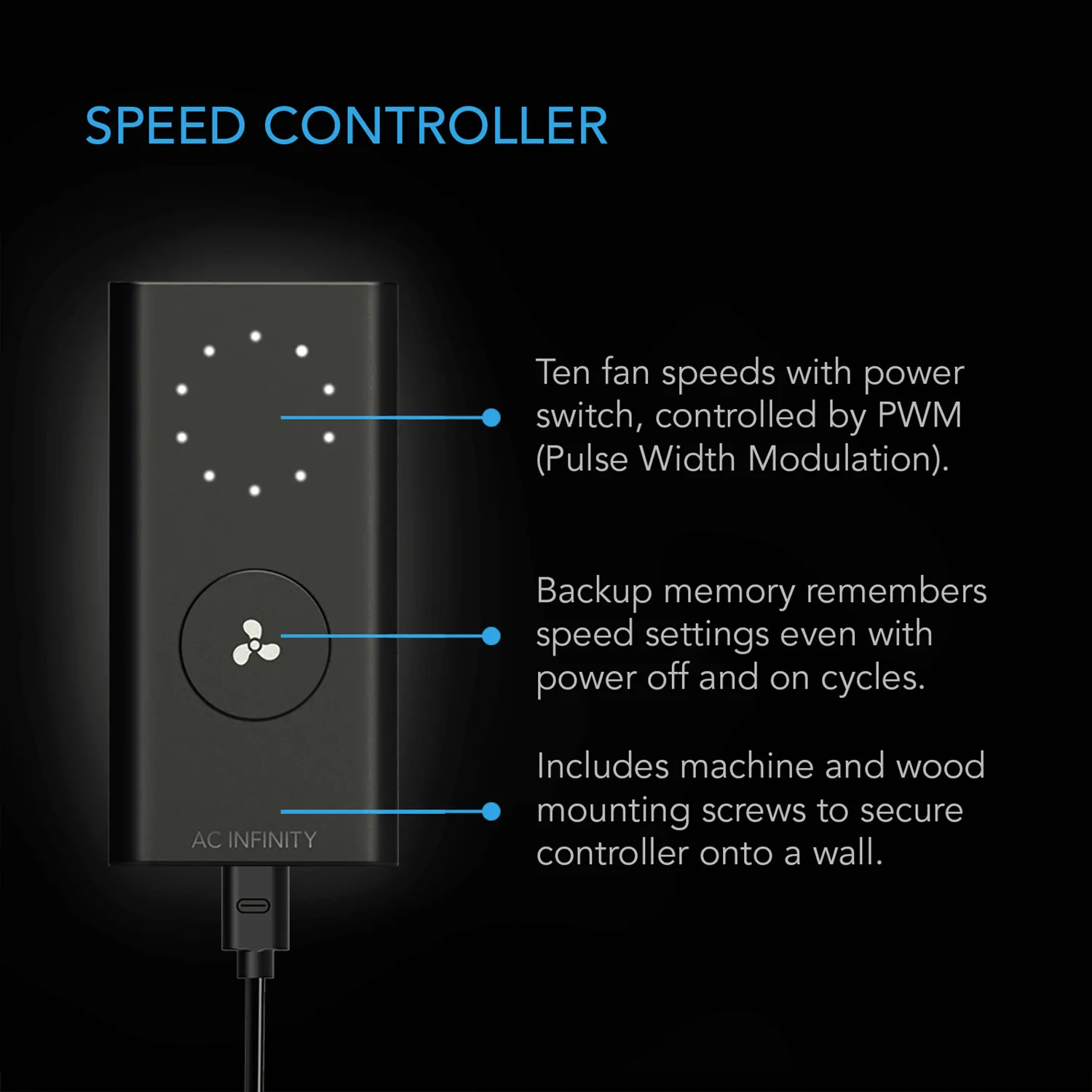

Precise Speed Controller: The controller lets you set the duct fan’s speed at ten different levels to achieve optimal noise and airflow in varying environments. It is backed up by a cutting-edge EC motor that uses Pulse Width Modulation (PWM) for precise control. The controller also features a backup memory that retains the last speed setting if power is cut off.

Quiet and Energy-Efficient Design: The duct fan uses a mixed-flow design with a stator blade and dual hydrodynamic wind circles, enabling it to maintain airflow even in restrictive applications. The 67000-hour rated dual ball bearings allow you to mount the duct fan unit in any direction. The unit is also IP44 rated, being highly resistant to dust and liquids, and performs well in harsh conditions.

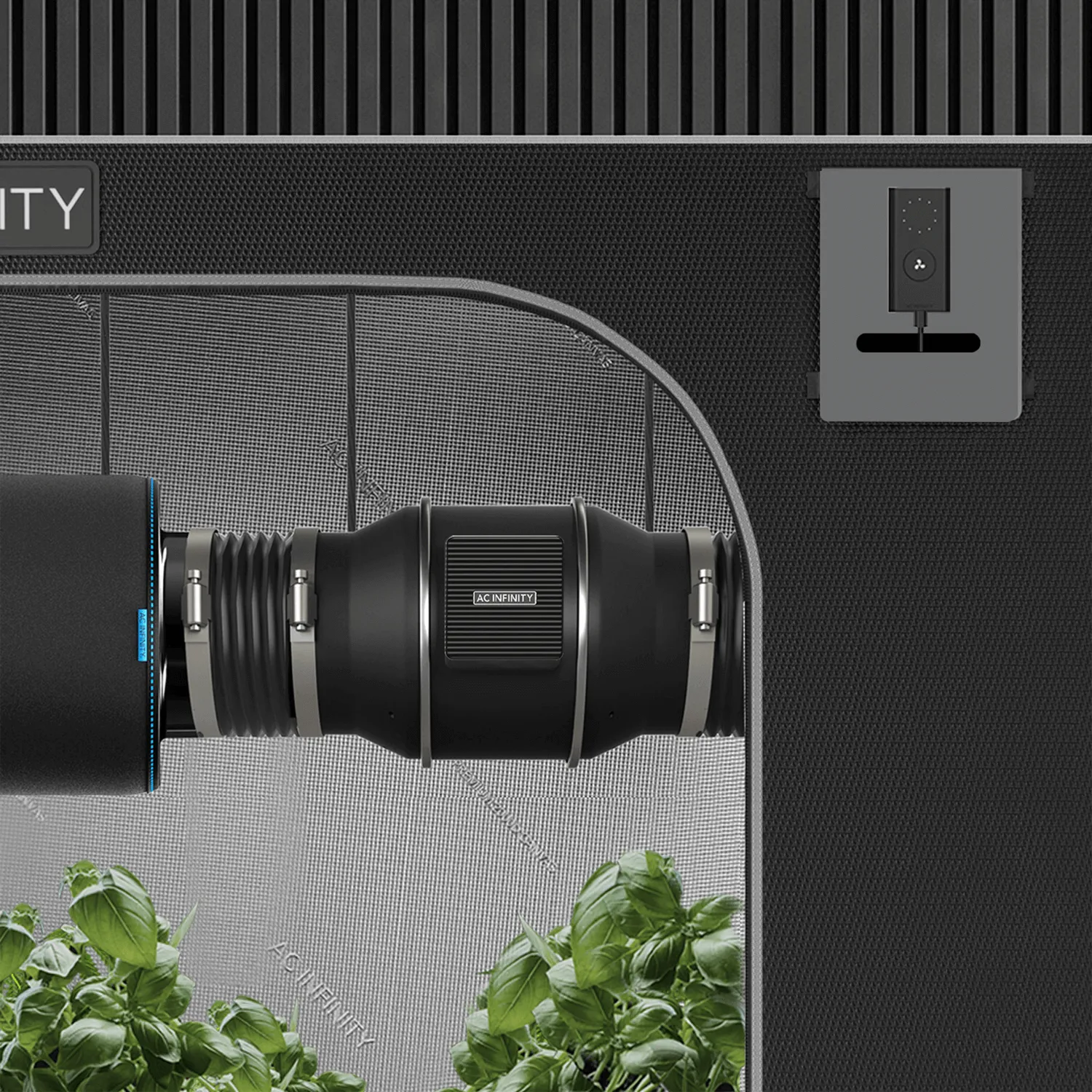

Applications: This quiet duct fan system is versatile, being popular for cooling AV equipment rooms, closets, racks, cabinets due to its low noise and advanced control features. It’s also used in various air circulation and ventilation projects like exhausting bathrooms and attics, and other installations.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: CLOUDLINE S8

Product Model: AI-CLS8

UPC Code: 819137020849

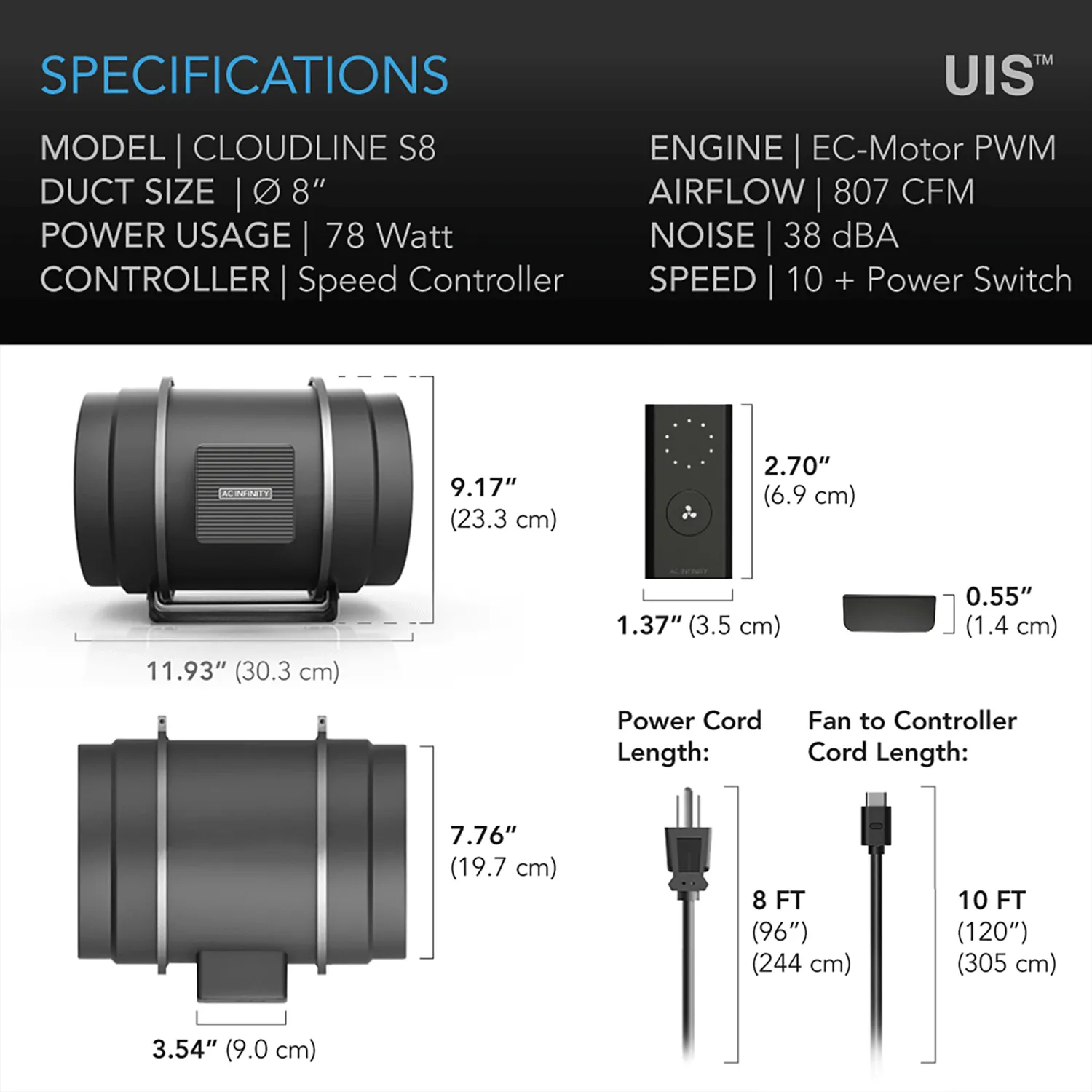

Product and Mounting Dimensions - Fan Unit

Duct Size: 8 inches

Total Dimensions: 8.54 x 11.89 x 9.17 inches

Mounting Hole-To-Hole Distance: 3.94 x 3.70 inches

Screw Hole Size: 0.217 inches diameter

Cord Length to Controller: 120 inches (10 feet)

Cord Length to Plug: 96 inches (8 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 3.34 x 2.95 x 0.51 inches

Product Performance and Technical Specs

Total Airflow: 807 CFM

Total Noise: 39 dBA

Static Pressure: 746 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 180 W

Average Power Usage: 78 W

Current: 2.3 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet

Download the Product Manual:

Download the IC Certification:

Download the RoHS Certification:

Download the ETL Certification:

Download the SAA Certification:

Download the CE Certification:
