Description

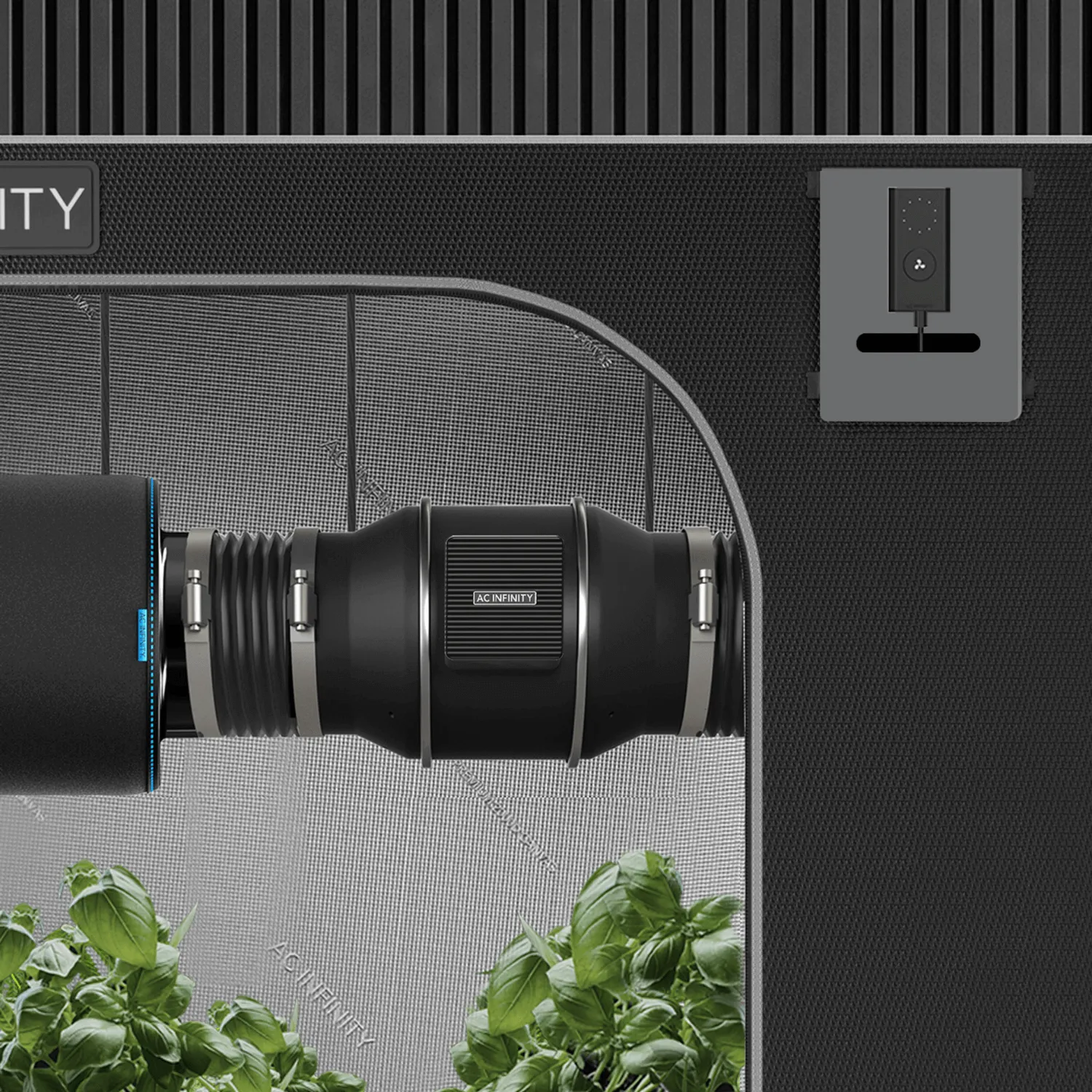

Quiet and Efficient Ventilation: Designed to ventilate grow tents, transfer heating/cooling to rooms, circulate fresh air, and cool AV closets with minimal noise. Its PWM-controlled EC motor delivers high performance while being energy-efficient, with minimal heat and noise.

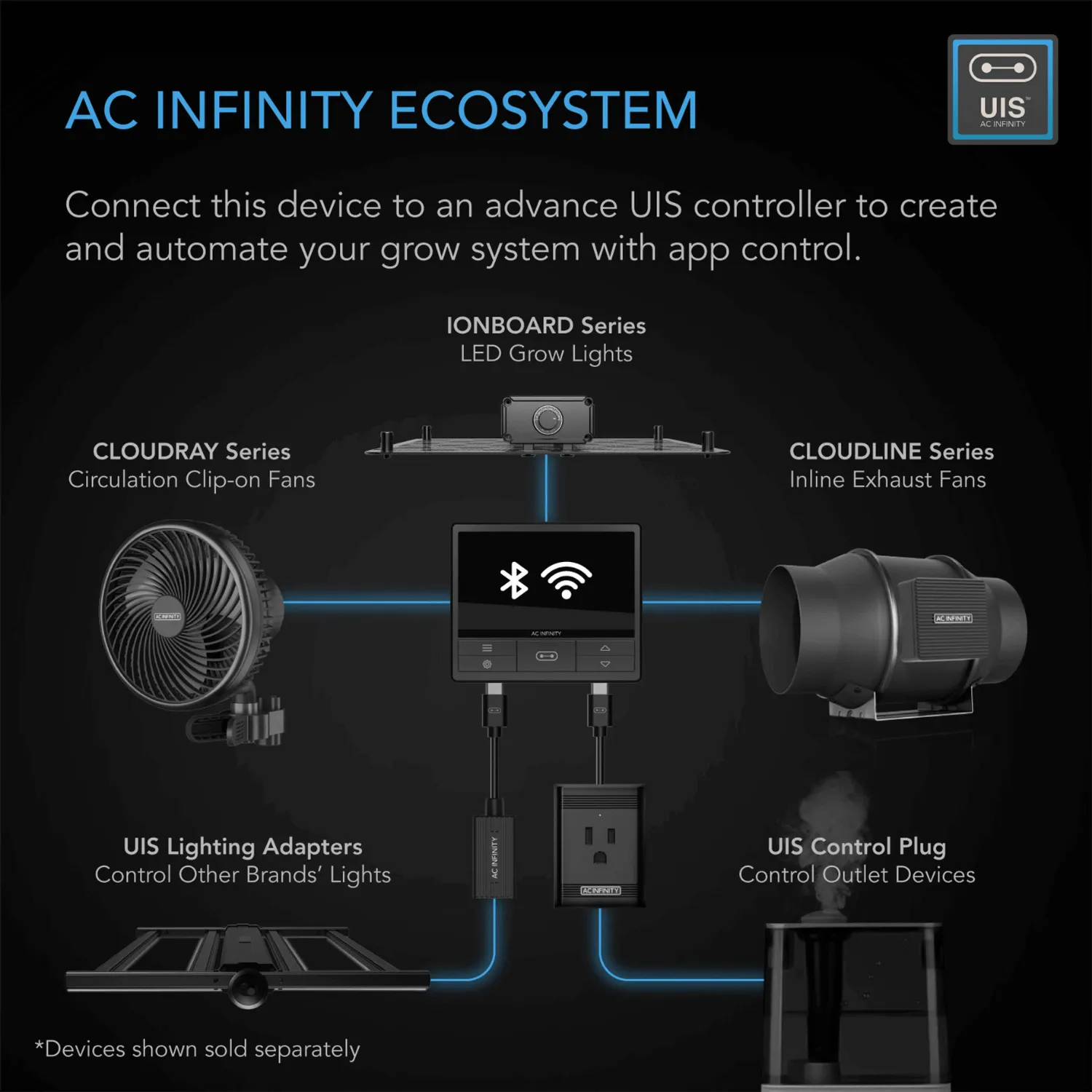

Intelligent Controller Compatibility: This device comes with a 10-speed fan controller and is compatible with all UIS controllers with intelligent programming, offering dynamic climate and time-based programming.

Mixed Flow Design: Features a mixed flow design with a stator blade and hydrodynamic wind circles that enable effective airflow delivery in high resistance areas. Its duct size is 12” and provides an airflow of 1604 CFM. The device's dimensions are 12.2 x 17.7 x 14.0 in. with a noise level of 62 dBA.

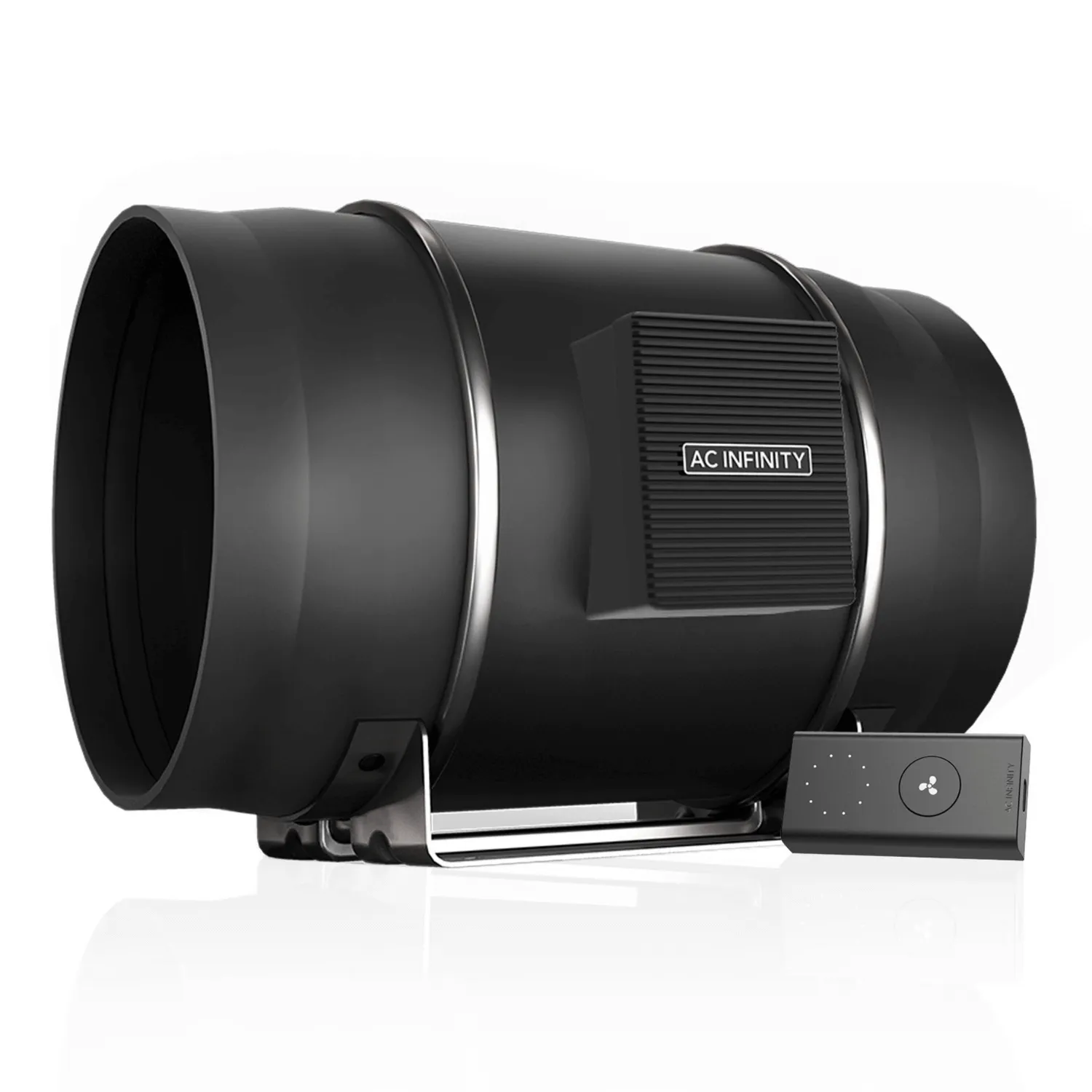

Product Description: A smart inline duct fan designed for quietly ventilating rooms, boosting heating/cooling, circulating fresh air, and cooling AV closets. Contains an inline mixed-flow design which maintains the airflow even in high static pressure applications. Comes with a detachable motor box for easy cleaning and maintenance, and includes a smart controller that can connect to multiple UIS devices.

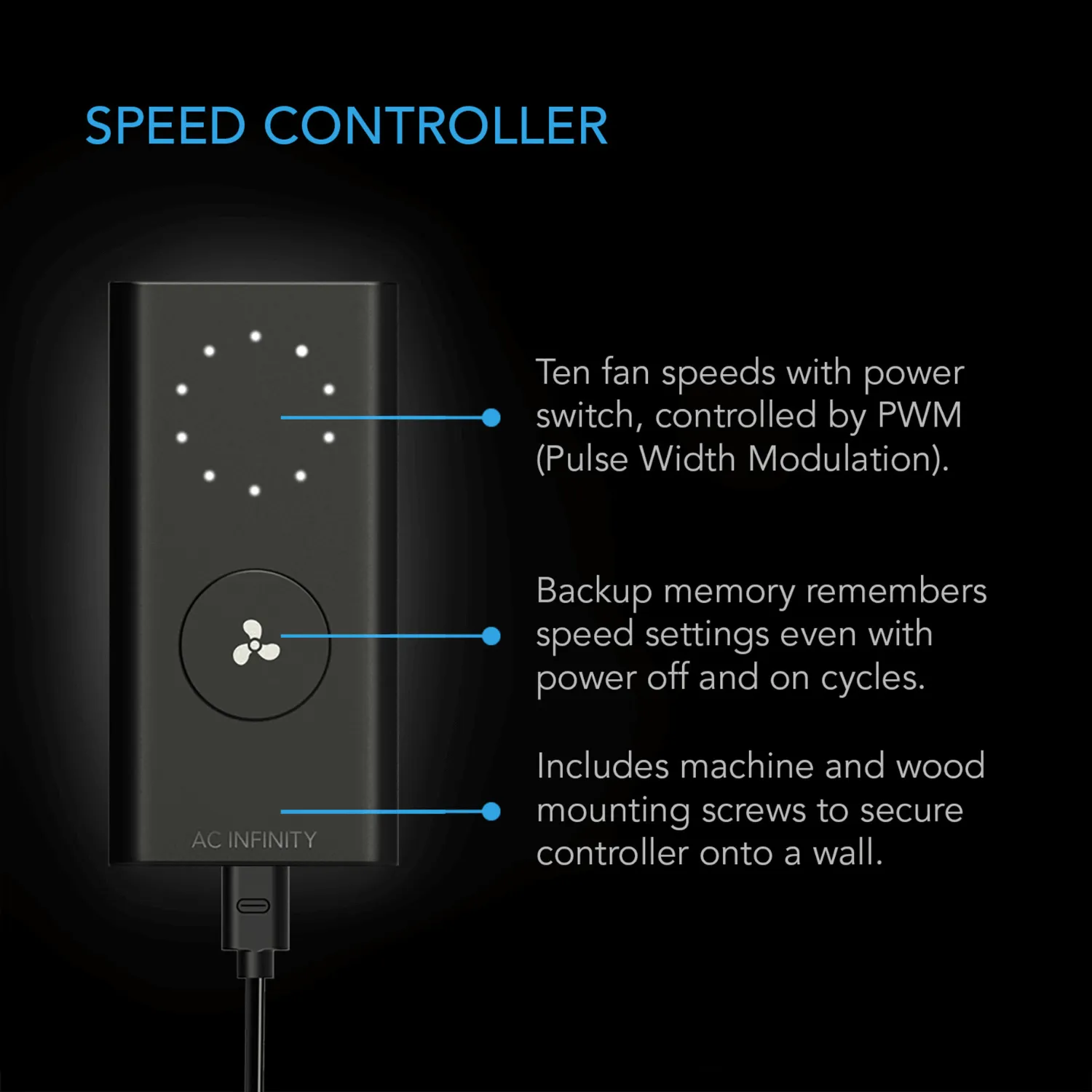

Precise Speed Controller: The speed controller allows the setting of the duct fan's speed between ten levels, ensuring optimal noise and airflow levels in various environments. The precise control offered by the inline fan's EC motor using Pulse Width Modulation (PWM) allows it to operate smoothly at extremely low RPM speeds without creating motor noise. Includes a backup memory that retains the last speed setting in the event of power loss.

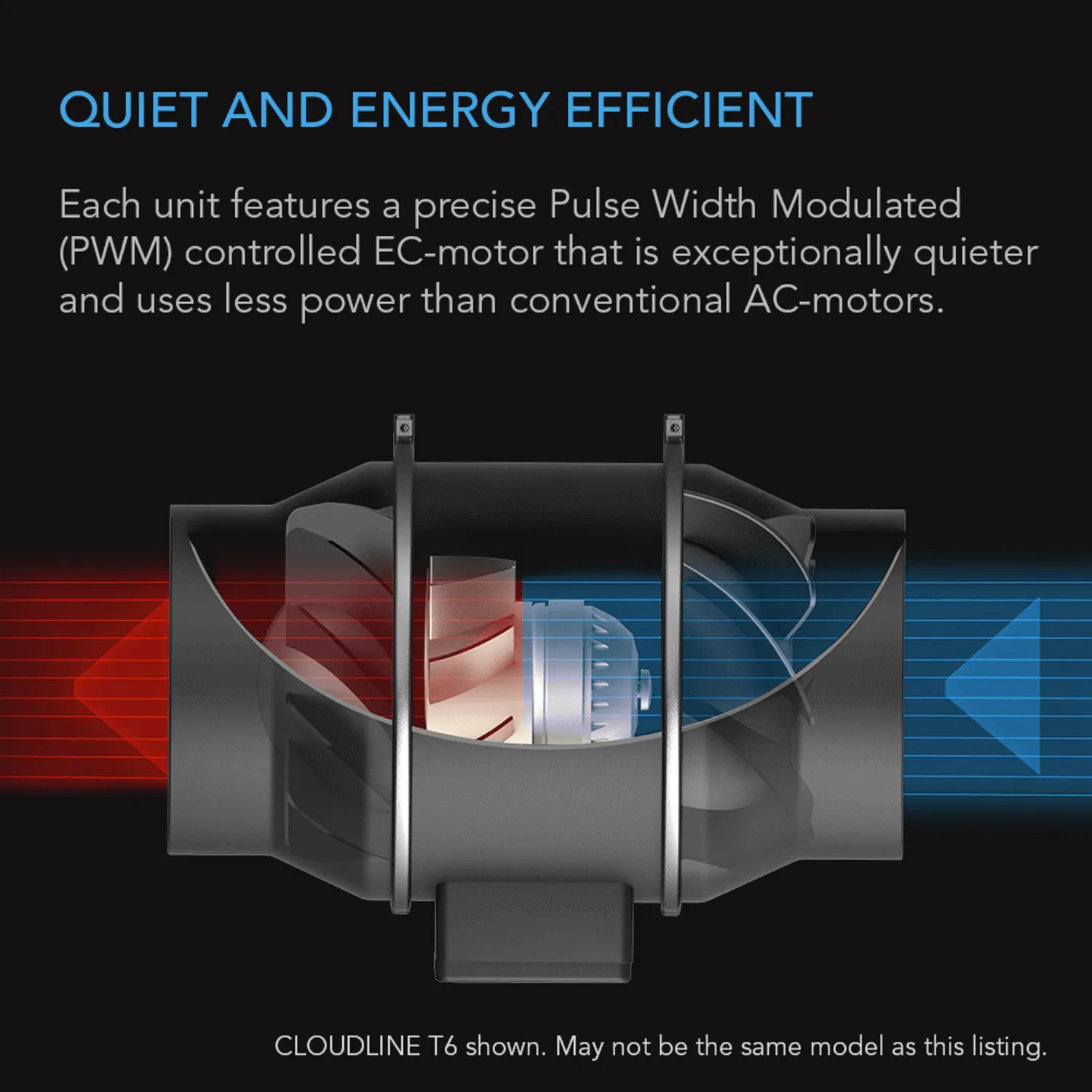

Quiet and Energy Efficient Design: The duct fan utilizes a mixed-flow design with a stator blade and dual hydrodynamic wind circles to deliver adequate airflow even in restricted spaces. It also employs dual ball bearings for fan mounting in any direction with an impressive life-rating of 67,000 hours. The fan also boasts an IP44 rating for significant resistance to dust and liquids, delivering dependable performance even under strenuous conditions.

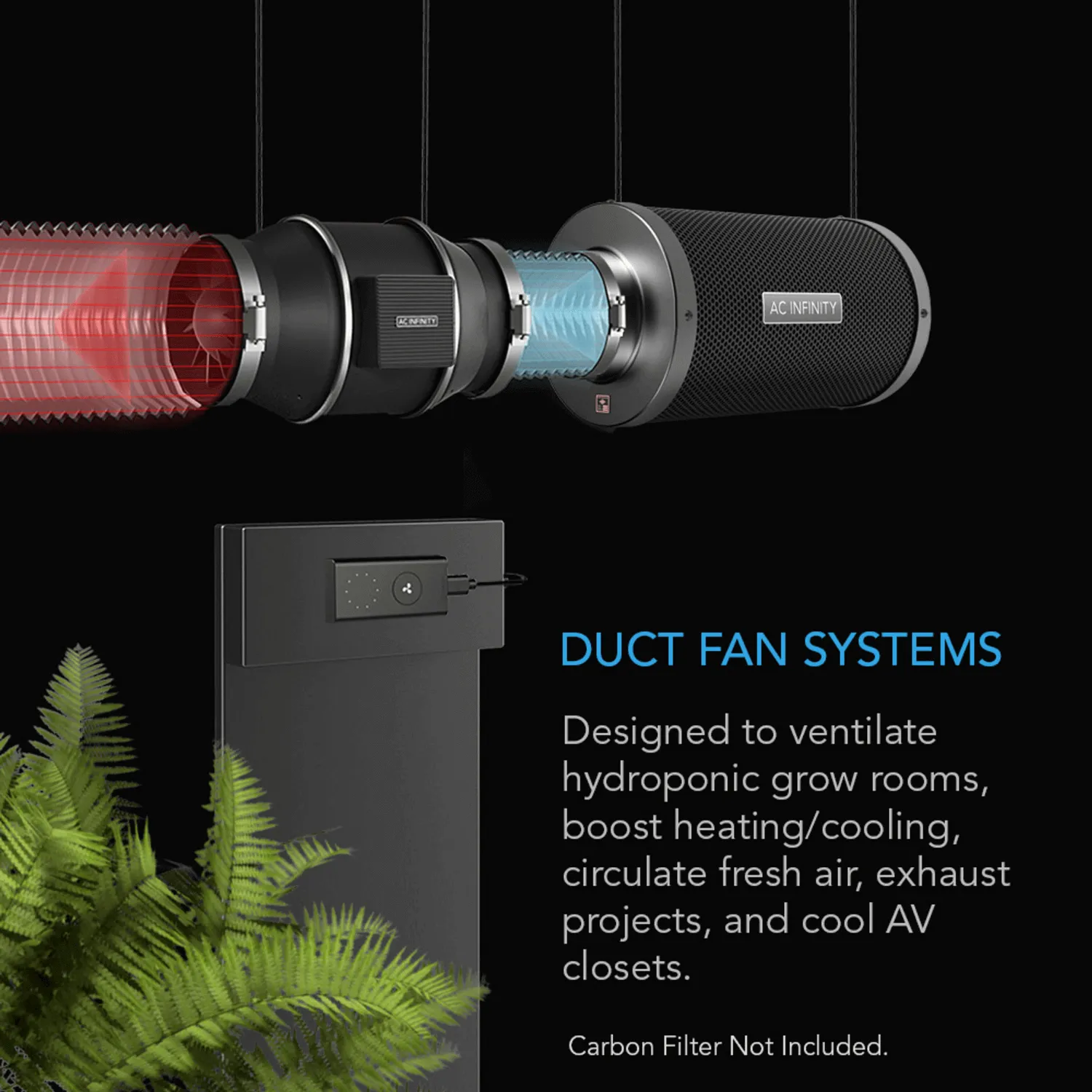

Wide Range of Applications: This dynamic duct fan system is commonly used to cool AV equipment rooms, closets, racks, and cabinets. Due to its low noise output and advanced control features, it is also a popular choice for air circulation and ventilation projects, including exhausting spaces and other installations.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: CLOUDLINE S12

Product Model: AI-CLS12

UPC Code: 819137021006

Product and Mounting Dimensions - Fan Unit

Duct Size: 12"

Total Dimensions: 12.28 x 17.71 x 14.05 in. (31.2 x 45.0 x 35.7 cm)

Mounting Hole-To-Hole Distance: 7.00 x 7.12 in. (17.8 x 18.1 cm)

Screw Hole Size: Ø 0.462 in. (Ø 1.18 cm)

Cord Length to Controller: 120 in. (10 feet)

Cord Length to Plug: 96 in. (8 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 7.5 x 1.3 cm)

Product Performance and Technical Specs

Total Airflow: 1604 CFM

Total Noise: 62 dBA

Static Pressure: 818 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 250 W

Average Power Usage: 139 W

Current: 2.5 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet

Download the Product Manual:

Download the IC Certification:

Download the RoHS Certification:

Download the ETL Certification:

Download the SAA Certification:

Download the CE Certification:
